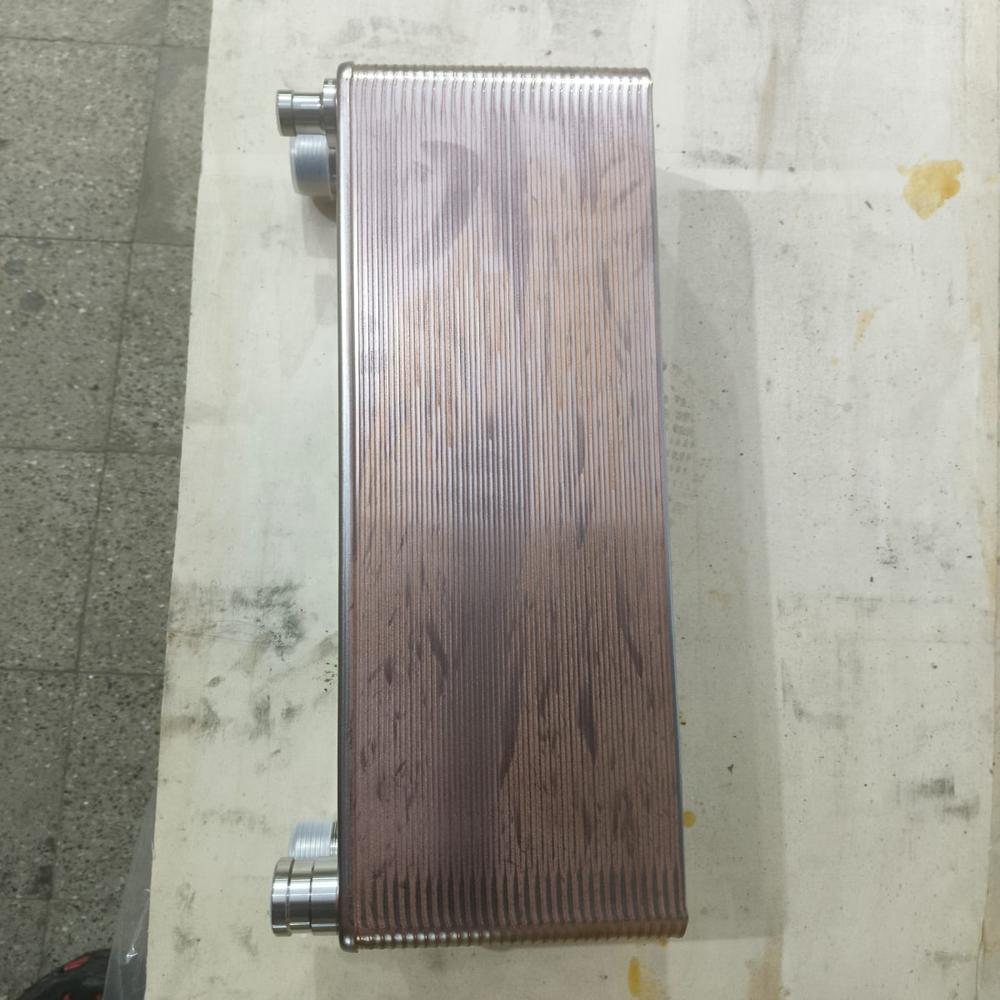

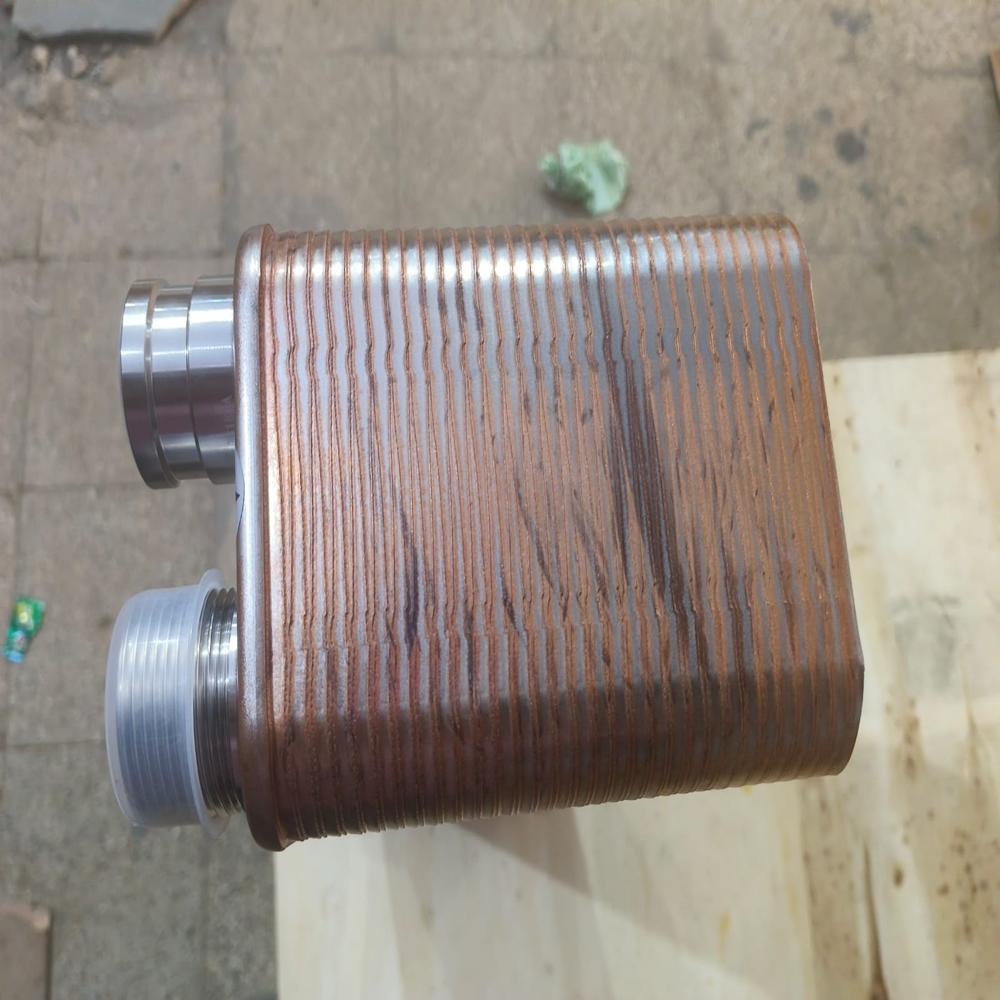

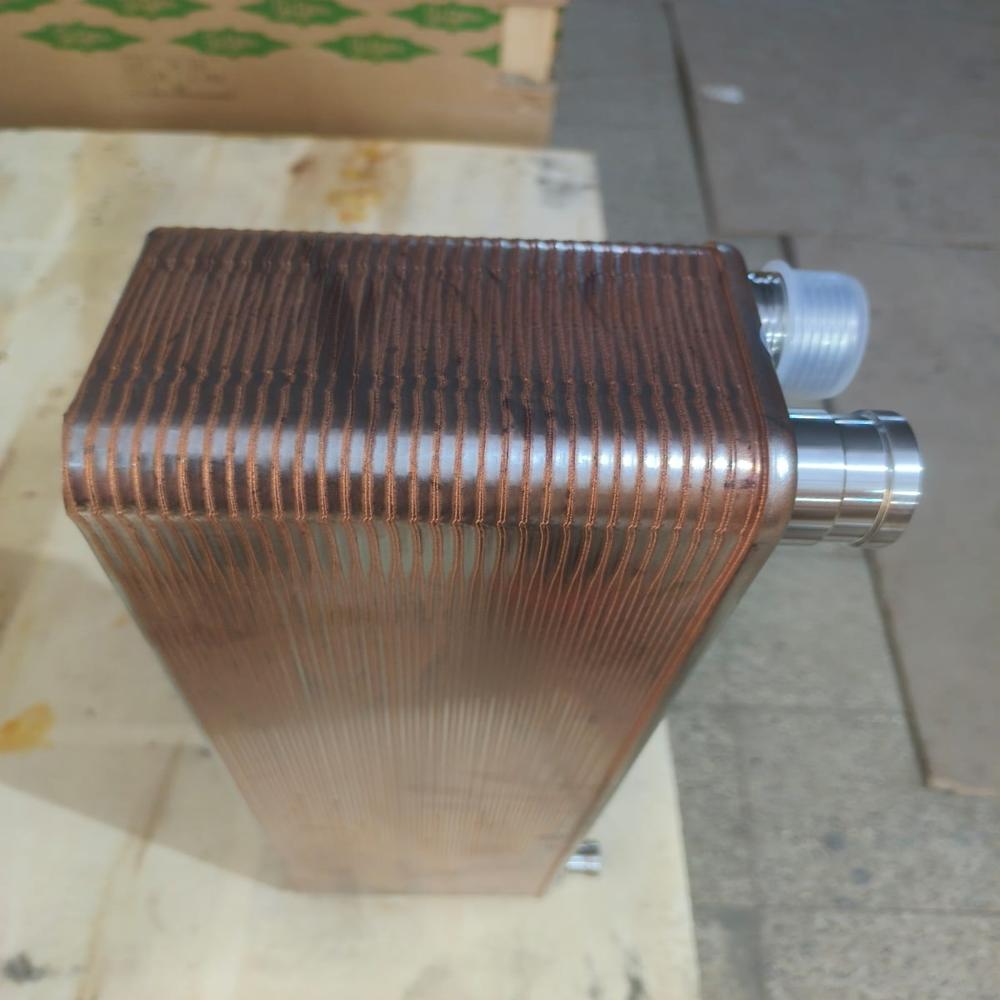

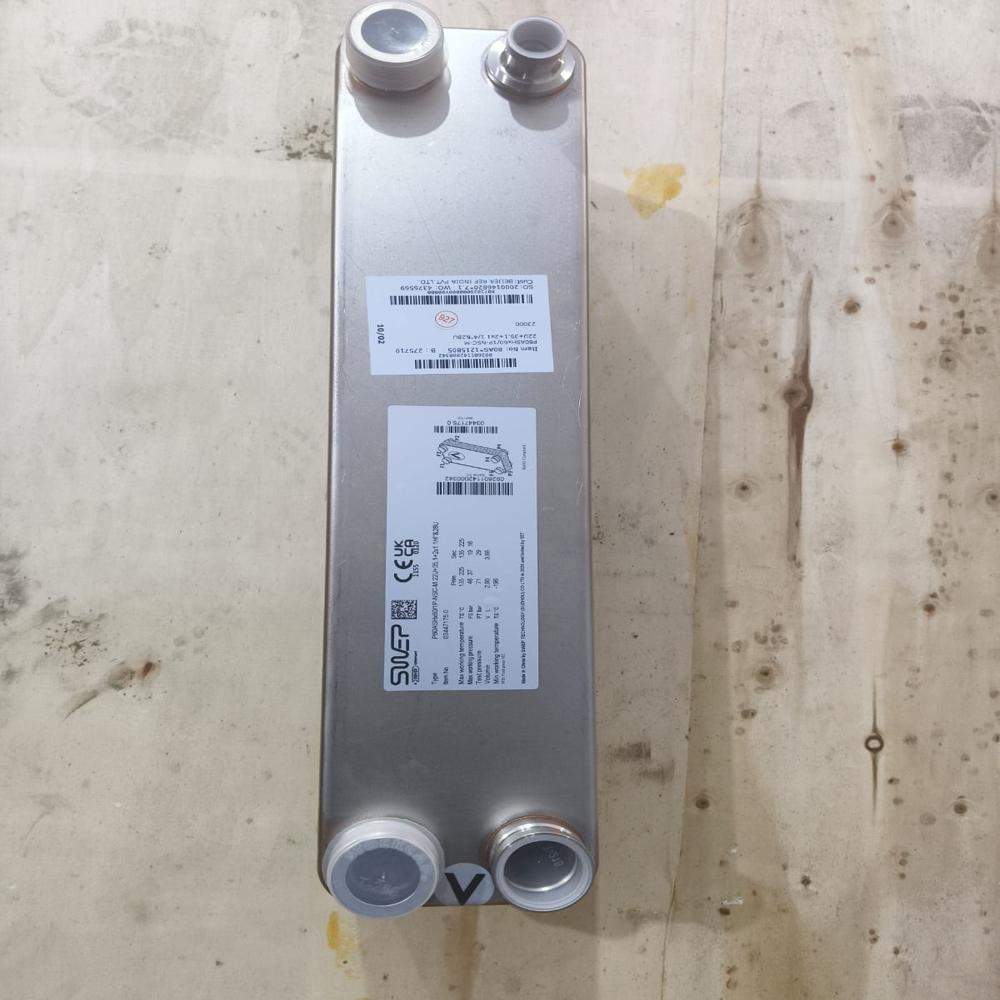

SWEP BRAZED PLATE HEAT EXCHANGERS (BPHE)

Price 635594.00 INR/ Number

Get a Price/Quote

MOQ : 1 Number

SWEP BRAZED PLATE HEAT EXCHANGERS (BPHE) Specification

Max Pressure
3.0 MPa (30 bar)

Thickness
Varies by model and plates (typically 0.3-0.4 mm/plate)

Number of Pipe
Typically 4 ports (2 inlets, 2 outlets)

Max. Capacity
Depends on configuration, up to 100 kW for standard units

Diameter
Port connection: 1 BSP/NPT (varies)

Temperature
-195C to +225C

Condition
Brand New

Structure
Brazed plate stainless steel

Liquid Flow Rate
Up to 10 m3/h (varies by model)

Working Presssure
Max. 30 bar (435 psi)

Voltage
N/A (passive component)

Power
N/A (passive component)

Weight
Approx. 8.25 kg

Dimensions
315 mm x 73 mm x 386 mm (L x W x H)

Heat Transfer Efficiency
Up to 95%

Port Type
Threaded/BSP or NPT (model-dependent)

Plate Material
Stainless Steel (AISI 316)

Corrosion Resistance
High, suitable for aggressive fluids

Design Pressure
30 bar

Brazing Material
Copper

Applications
HVAC, Industrial, Refrigeration, Heat Recovery

Heat Exchange Surface Area
Up to 2 m2 (model dependent)

Maintenance
Virtually maintenance free

Model
B10T (example)

Number of Plates
Up to 60+

SWEP BRAZED PLATE HEAT EXCHANGERS (BPHE) Trade Information

Minimum Order Quantity
1 Number

Delivery Time
3 Days

About SWEP BRAZED PLATE HEAT EXCHANGERS (BPHE)

Seize this hot deal on SWEP Brazed Plate Heat Exchangers (BPHE) - where affordability meets pristine efficiency. Designed with AISI 316 stainless steel plates and copper brazing, these units deliver crowning performance, handling heat loads up to 100 kW. Their decorated engineering ensures up to 95% heat transfer efficiency, outstanding corrosion resistance, and virtually maintenance-free operation. Each model is tailored for aggressive fluids with threaded/BSP or NPT ports, up to 60+ plates, and working pressures of 30 bar. Ideal for HVAC, industrial, refrigeration, and heat recovery applications, these BPHEs represent the ultimate bargain for reliability and performance. Available for traders, dealers, service providers, and wholesalers across India.

Versatile Commercial Applications and Use Directions

SWEP Brazed Plate Heat Exchangers (BPHE) excel in commercial HVAC, industrial processing, heat recovery, and refrigeration systems. As a general-use component, they precisely transfer heat between two fluids, maximizing energy efficiency. Specific use includes installation at heat transfer junctions-follow provided directions for orientation and secure threaded/BSP or NPT port connections as required by the application. These units adapt seamlessly into complex plumbing setups, ensuring reliable operation in demanding commercial environments.

Payment Terms, Domestic Market Scope, and Certifications

For the Indian domestic market, SWEP BPHEs are shipped goods with flexible payment terms to suit retailers and wholesalers alike. Certifications for quality and safety are provided upon request, aligning with industry standards. List prices are competitively set, offering strong value for dealers and service providers. Products are distributed nationwide, ensuring prompt delivery and after-sales support to meet the rigorous demands of local industry and commercial clients.

FAQ's of SWEP BRAZED PLATE HEAT EXCHANGERS (BPHE):

Q: How do SWEP Brazed Plate Heat Exchangers ensure efficient heat transfer in commercial applications?

A: SWEP BPHEs provide heat transfer efficiency up to 95% due to their compact, multi-plate stainless steel and copper brazed design. Their large surface area maximizes the energy exchange between fluids, making them ideal for demanding HVAC, industrial, and heat recovery uses.

Q: What is the process for maintaining a SWEP BPHE unit?

A: SWEP BPHEs are virtually maintenance-free due to their self-cleaning, non-clogging construction. Routine visual inspections and flushing to remove deposits, if needed, will keep them operating at peak efficiency for years.

Q: When should I choose a model with threaded/BSP versus NPT ports?

A: Select a port type based on the piping system in your installation-BSP threads are standard in many Indian applications, while NPT is commonly used in North America and some industrial facilities. Choosing the correct port ensures secure connections and leak-free operation.

Q: Where are SWEP BPHEs most commonly installed?

A: These units are widely installed in commercial HVAC systems, industrial facilities for process heat exchange, refrigeration lines, and heat recovery circuits - wherever compact, energy-efficient heat transfer is required.

Q: What benefits do SWEP BPHEs offer over traditional shell-and-tube exchangers?

A: SWEP BPHEs are more compact, lighter, offer higher efficiency, and require less maintenance than traditional shell-and-tube exchangers. Their stainless steel and copper construction provides high corrosion resistance, ideal for aggressive fluids.
