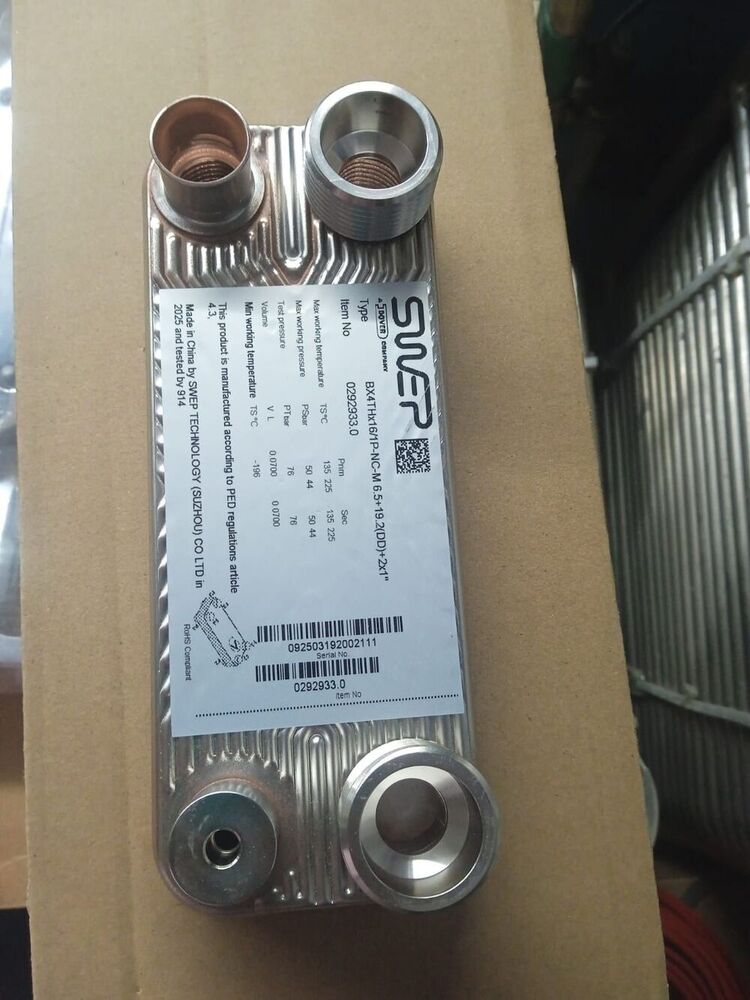

SWEP Brazed Plate Heat Exchanger

Name: SWEP Brazed Plate Heat Exchanger
Brand: Kiaan Thermal
Price: 9200.0 INR
Availability: InStock

Price 9200.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SWEP Brazed Plate Heat Exchanger Specification

Diameter
Port: 3/4 BSP

Max Pressure
30 bar

Max. Capacity
65 kW

Thickness
36 mm (varies with model)

Number of Pipe
4 (connections)

Condition
New

Structure
Other

Liquid Flow Rate
Up to 2.5 m3/h (varies with model)

Working Presssure
Max 30 bar

Voltage
N/A (mechanical device)

Power
No power required (passive device)

Weight
Approx. 7.5 kg

Dimensions
290 mm x 73 mm x 207 mm

Installation Orientation
Vertical or horizontal

Brazing Material
Copper

Maintenance
Low, compact and service-free

Plate Material
AISI 316 Stainless Steel

Fluid Compatibility
Water, glycol, oil, refrigerants

Heat Exchange Type
Liquid-to-Liquid

Applications
HVAC, refrigeration, heat pumps, process industry

Port Type
Threaded BSP

SWEP Brazed Plate Heat Exchanger Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Against Delivery (CAD), Cash on Delivery (COD), Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About SWEP Brazed Plate Heat Exchanger

Access the marvel of energy efficiency with the SWEP Brazed Plate Heat Exchanger, crafted from exquisite AISI 316 stainless steel and robust copper brazing. Engineered for crowning performance in liquid-to-liquid applications such as HVAC, refrigeration, heat pumps, and the process industry, this compact unit jumps on superior fluid compatibility-including water, glycol, oil, and refrigerants. Its threaded BSP connections and versatile vertical or horizontal installation make setup effortless. With low-maintenance, service-free operation and a max capacity of 65 kW, this opportunity is ending soon-secure yours before supplies run out!

Versatile Use and Application Highlights

The SWEP Brazed Plate Heat Exchanger is used as a compact, energy-efficient heat transfer unit for process fluids in industrial and commercial sectors. Its use type is mechanical and entirely passive, making it ideal for integration into HVAC systems, refrigeration circuits, heat pumps, and diverse process industries. Application places range from industrial plants to commercial installations, supporting a wide range of temperature and pressure requirements with its robust construction and flexible port orientations.

Payment Terms and Export Policies

Payment for the SWEP Brazed Plate Heat Exchanger is typically processed through formal purchase orders. Customers can request dispatching via standard freight options, with flexible payment terms as per supplier contract or trade agreements. Sample policy varies-reach out to confirm sample availability prior to bulk orders. The main export markets include India and neighboring countries, making global logistics and support accessible for large-scale installations or swift replacement needs.

FAQ's of SWEP Brazed Plate Heat Exchanger:

Q: How is the SWEP Brazed Plate Heat Exchanger installed?

A: It can be mounted either vertically or horizontally, adapting easily to various system layouts with threaded BSP port connections for straightforward piping.

Q: What are the main benefits of using this heat exchanger in HVAC or refrigeration systems?

A: Major benefits include exceptional energy efficiency, low maintenance, compact design, broad fluid compatibility, and a wide operating temperature range, making it suitable for both new installations and system upgrades.

Q: When should I consider replacing my current heat exchanger with this model?

A: Upgrade when seeking superior corrosion resistance, higher operating pressures (up to 30 bar), or when a more compact, service-free solution is needed for your liquid-to-liquid heat transfer applications.

Q: Where is this product commonly used?

A: It finds use in HVAC units, industrial heat pumps, refrigeration systems, and process industries that require robust and efficient cooling or heating interchanges.

Q: What is the process for ordering and receiving this heat exchanger?

A: To order, submit a purchase order to the supplier. Shipments are dispatched promptly once payment terms are satisfied, and freight options are available for national or international delivery.

Q: How can I ensure fluid compatibility for my system's requirements?

A: Refer to the product specifications-this model is compatible with water, glycol, oil, and most common refrigerants. For specialty fluids, consult the supplier prior to use.
