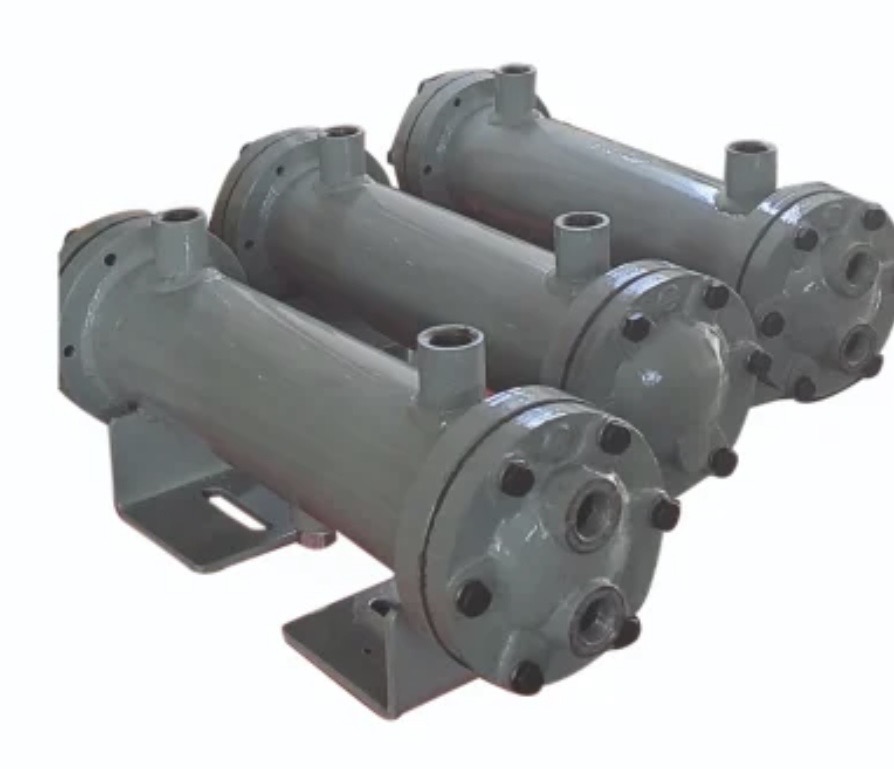

Shell and tube Hudrolic oil cooler

Name: Shell and tube Hudrolic oil cooler
Brand: Kiaan Thermal
Price: 17000.0 INR
Availability: InStock

Price 17000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Shell and tube Hudrolic oil cooler Specification

Max. Capacity
40000 kcal/hr (varies by model)

Number of Pipe
18 - 100 tubes depending on design

Thickness
Shell: 4-6 mm, Tube: 1-1.5 mm

Air Volume
Not Applicable (for water-cooled applications)

Diameter
Shell diameter: 100 mm - 300 mm (varies by model)

Max Pressure
16 bar

Condition
New

Structure
Shell and tube type

Liquid Flow Rate
20-200 LPM (varies by model)

Working Presssure
Up to 16 bar

Power
Not Applicable (uses process fluid and ambient air/water)

Weight
Approx. 15-40 kg (varies by model)

Dimensions
650 mm x 200 mm x 220 mm (approx., typical for medium size)

Cooling Medium
Water (fresh or sea)

Leak Test
100% leak tested before dispatch

Material
Carbon steel shell, copper or stainless steel tubes

Application
Hydraulic and lubrication oil cooling

Tube Size
12.7 mm OD typical

Corrosion Resistance
Anti-corrosive epoxy paint finish

Cleaning Method
Detachable covers for tube cleaning

Design Pressure
Tested up to 24 bar

Mounting
Horizontal and vertical mounting available

Compatible Fluids
Mineral oil, synthetic oil, water glycol fluids

Tube Bundle
Removable for easy maintenance

End Connection
Threaded or flanged

Shell and tube Hudrolic oil cooler Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
10 Days

About Shell and tube Hudrolic oil cooler

Discover a transcendent solution for your processing needs with our Food Grade SS Plate Heat Exchanger. Crafted from valiant 304/316L stainless steel with mirror-polished surfaces, it delivers unparalleled corrosion resistance and reliability. Take advantage of instant checkout to get fast access to a system designed for the rigors of dairy, food & beverage, and the chemical industry. With intelligent CIP self-cleaning, excellent gasket options, and diverse connection types, be empowered to achieve optimal, seamless operations. Experience unmatched efficiency, robust structure, and compliance, ready for your next big project in India.

Advanced Shell and Tube Cooling Versatility

Offering both horizontal and vertical mounting, this cooler suits multiple installation requirements. It's constructed with a carbon steel shell and copper or stainless steel tubes, further protected by an anti-corrosive epoxy finish. Adaptable to either fresh or sea water, it delivers efficient and dependable cooling for hydraulic and lubrication systems in diverse environments.

Easy Maintenance and Longevity

With a fully removable tube bundle and detachable covers, routine cleaning and upkeep are straightforward, supporting long-lasting and reliable operation. All models undergo rigorous testing, including 100% leak tests before shipping, ensuring performance and peace of mind for dealers, service providers, and end-users.

FAQ's of Shell and tube Hudrolic oil cooler:

Q: How is the shell and tube hydraulic oil cooler maintained?

A: Maintenance is straightforward thanks to the removable tube bundle and detachable covers. Regular cleaning of the tubes is recommended to ensure optimal heat transfer efficiency and prevent fouling, which can be performed on-site without dismantling the entire cooler.

Q: What are the typical applications of this oil cooler?

A: These coolers are ideal for hydraulic and lubrication oil cooling in industrial machinery, power plants, and marine systems where stable fluid temperatures enhance system reliability and performance.

Q: When is it necessary to choose between copper and stainless steel tubes?

A: Copper tubes are preferred when used with fresh water for good thermal conductivity, whereas stainless steel is recommended in environments involving sea water or corrosive fluids for enhanced durability and resistance.

Q: Where can the cooler be installed?

A: This cooler is suitable for both indoor and outdoor installations, with horizontal or vertical mounting flexibility. The robust construction and epoxy-coated shell make it ideal for harsh or corrosive settings.

Q: What is the process for cleaning the oil cooler tubes?

A: Simply remove the detachable covers to access the tube bundle, which can then be washed or brushed clean. This process helps maintain maximum heat transfer efficiency and prolongs the cooler's lifespan.

Q: How does this cooler benefit hydraulic system operations?

A: By maintaining controlled oil temperatures, the cooler helps prevent overheating, minimizes wear, and optimizes the viscosity of hydraulic fluids-ultimately enhancing performance and extending equipment life.
