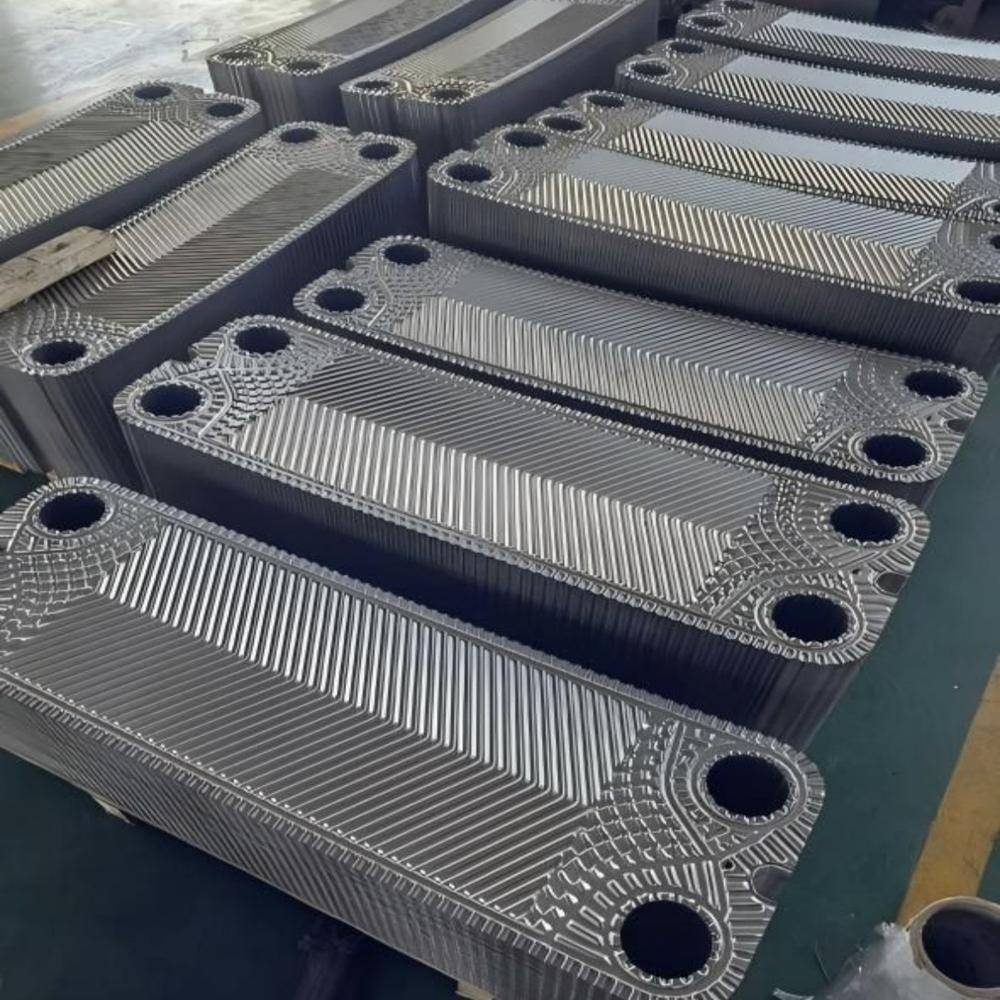

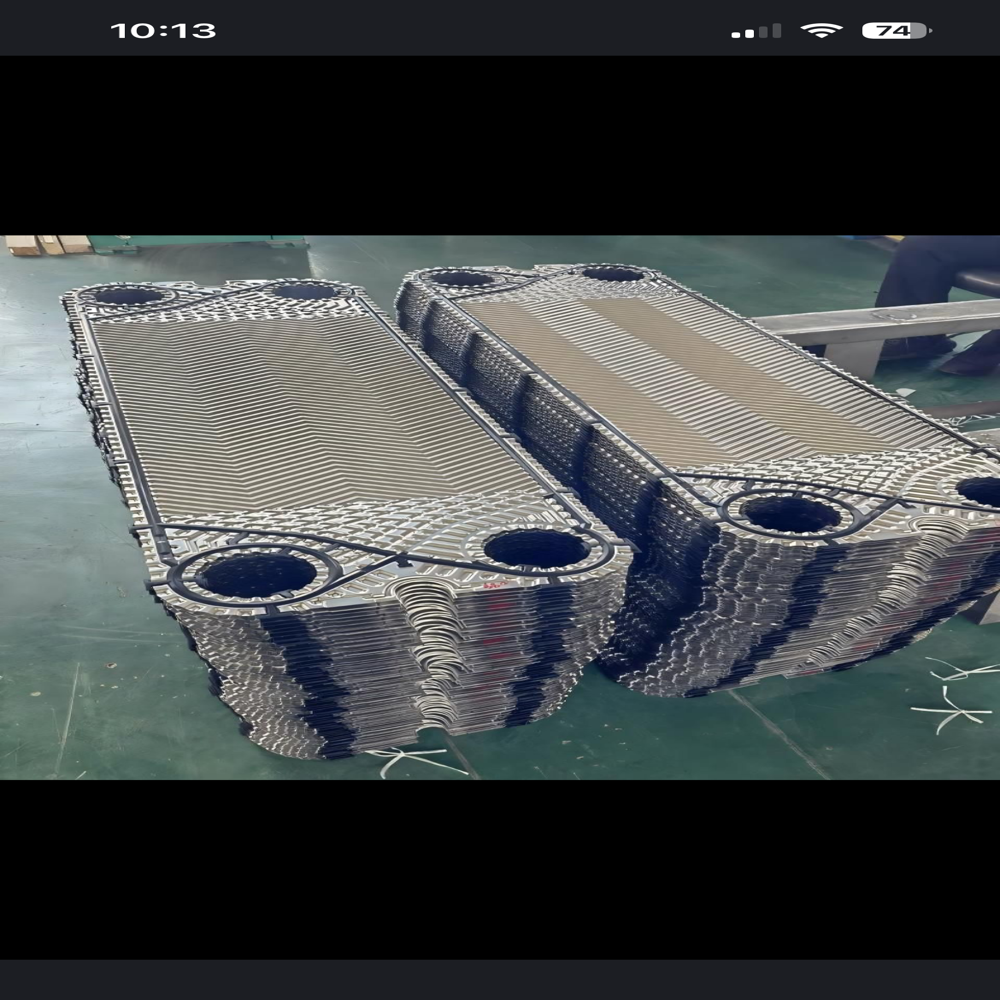

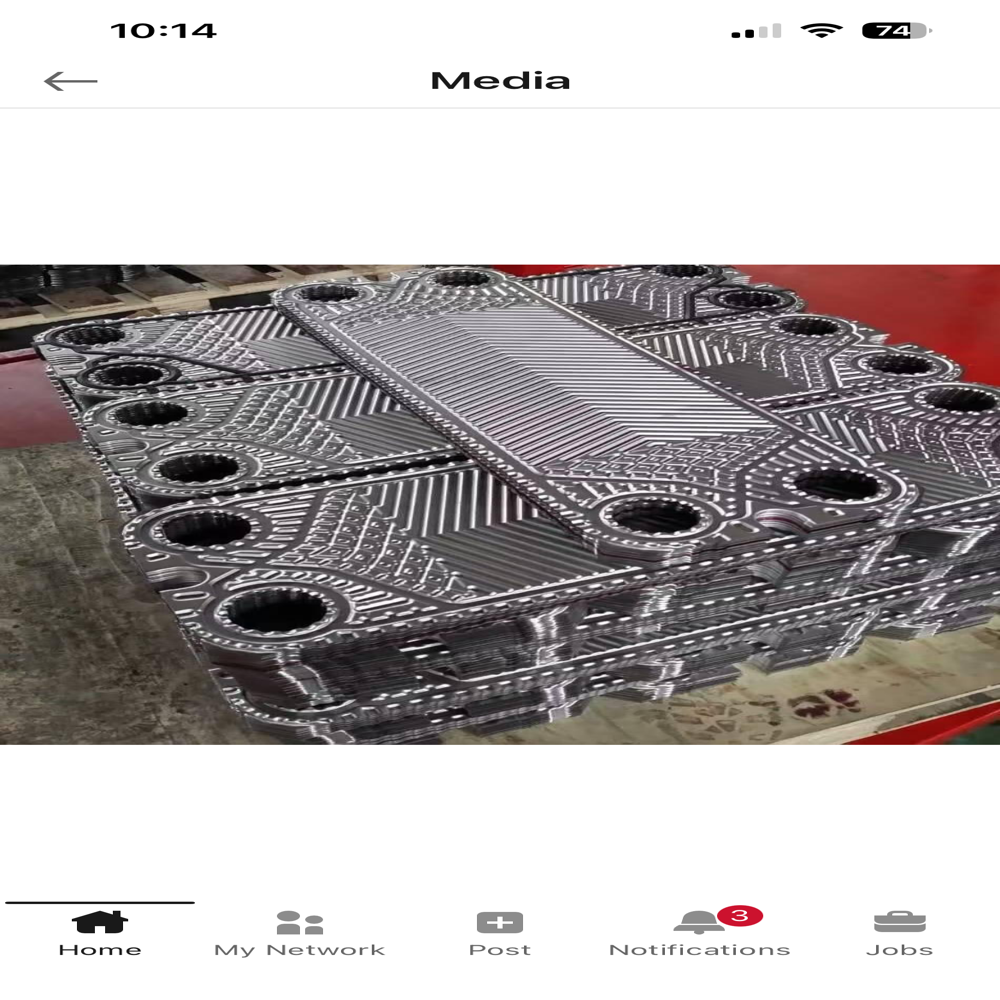

M6M plate

Name: M6M plate
Brand: Kiaan Thermal
Price: 750.0 INR
Availability: InStock

Price 750.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

M6M plate Specification

Standard
GB/T 151-2014, ASME, DIN, JIS

Vaccum Range
Down to 5103 mbar

Temperature Resistance
Up to 200C

Medium
Other

Working Temperature
-20C to 200C (depending on material)

Gasket Coefficient
As per gasket material, typically 0.1-0.4

Hardness
Standard Stainless Steel Hardness (Approx. 200 HV)

Pressure Resistance
Up to 2.5 MPa

Material
Other

Shape
Rectangular with rounded edges and port holes

Outer Ring
Perimeter forms sealing boundary, supports gasket placement

Inner Ring
Integrated as part of port holes for gasket placement

Size
Customizable, typical ranges 300mm x 1000mm up to 1000mm x 3000mm

Application
Plate Heat Exchangers, HVAC Systems, Power Plants, Chemical Processing

Thickness
0.5 Millimeter (mm)

Color
Metallic silver (surface depends on alloy type)

Connection Type
Four-pass or multi-pass for diversified flow arrangements

Gasket Type
NBR, EPDM, Viton, PTFE based on process demands

Cleaning Type
Detachable for CIP (Clean in Place) maintenance

Capacity Range
5 kW to 5 MW (system dependent)

Plate Alignment
Guide bars and locators for precise stacking

Leakage Protection
Double sealing zones

Compatible Fluids
Brine, glycols, process fluids, potable water

Surface Finish
Bright annealed or pickled, Ra 0.4m

Port Diameter
50 mm, 80 mm, 100 mm, customizable

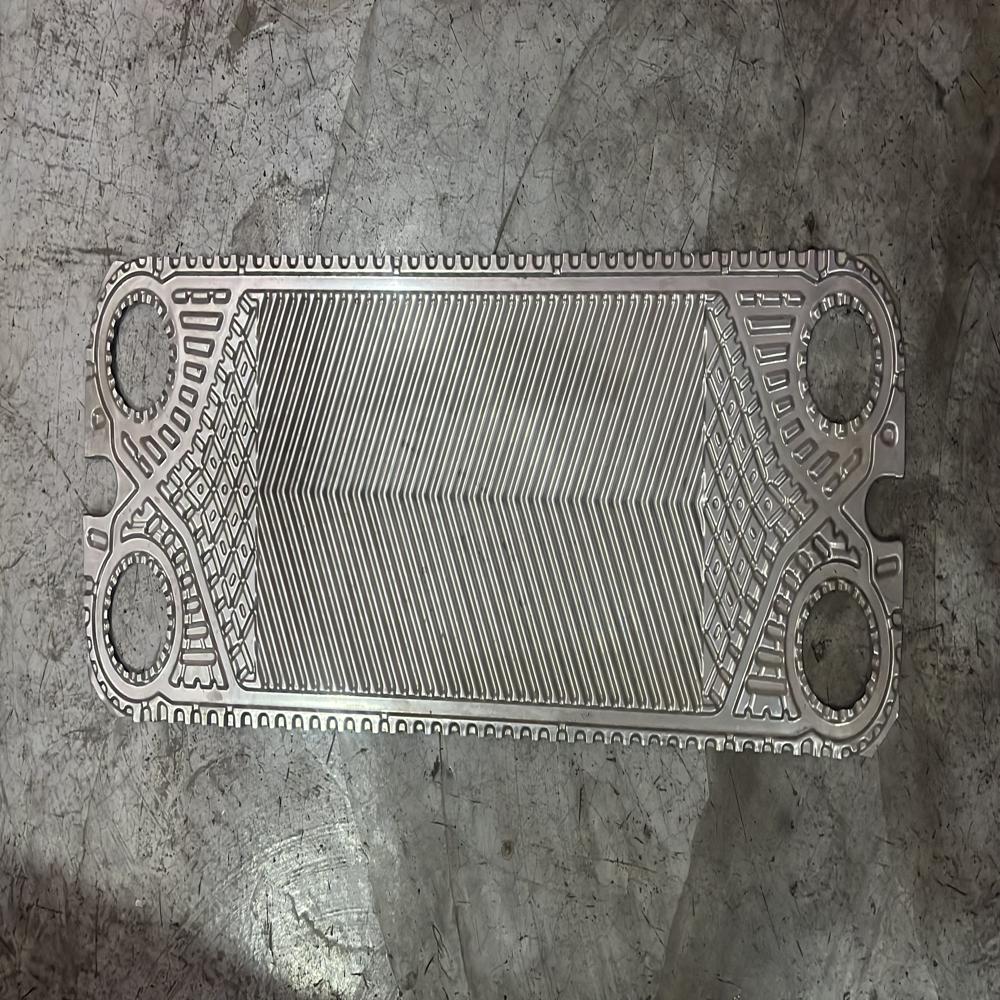

Corrugation Pattern
Chevron (herringbone) pattern for improved heat transfer and turbulence

Weight
Varies by size and material, approx. 1.5-12 kg per plate

M6M plate Trade Information

Minimum Order Quantity
1 Number

Delivery Time
2 Days

About M6M plate

Take advantage of the gilt-edged, trending M6M plate with enviable Chevron corrugation pattern, engineered for optimum heat transfer and turbulence. Sought-after for its adaptability, it features customizable port diameters (50mm, 80mm, 100mm), surface finishes (bright annealed, pickled, Ra0.4m), and a wide selection of gaskets (NBR, EPDM, Viton, PTFE). Benefit from competitive pricing and advanced leakage protection via double sealing zones, precise plate alignment, and easy detachable cleaning. Designed for HVAC, power plants, and chemical processing, the M6M plate delivers reliable performance across capacity ranges from 5 kW to 5 MW.

Optimal Utility in Demanding Plants

The M6M plate is extensively used by HVAC professionals, power plant engineers, and chemical processing industries for its flexibility and customization options. Plant operators appreciate its precise design, facilitating enviable heat transfer and minimizing downtime during maintenance. With trusted compatibility for brine, glycols, potable water, and process fluids, this plate ensures enhanced plant application across medium and large-scale operations, making it a must-have component for improving overall system efficiency.

Efficient Packaging and Export Practices

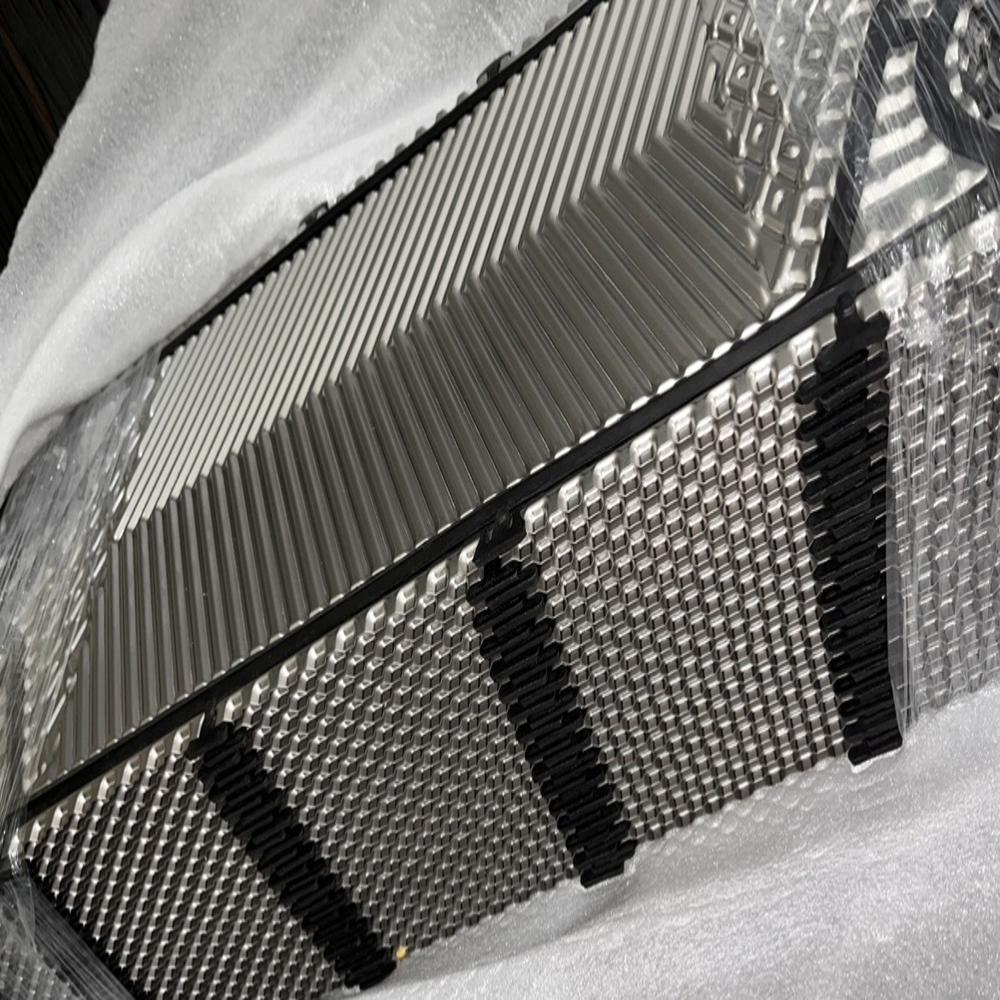

Every M6M plate order is carefully dispatched in robust, secure packaging, minimizing transit damage. We estimate packaging sizes based on quantity and customized plate dimensions, ensuring each unit is efficiently handed over for quick delivery. Our sample policy enables customers to evaluate product integrity before bulk orders, catering primarily to export markets in Asia, Europe, and North America. Timely dispatch and safe handling guarantee global clients receive plates in pristine condition, ready for immediate installation.

FAQ's of M6M plate:

Q: How does the Chevron (herringbone) corrugation pattern enhance heat transfer in the M6M plate?

A: The Chevron or herringbone corrugation pattern creates increased turbulence and improved fluid distribution across the plate, maximizing the rate of heat exchange and providing highly efficient thermal performance.

Q: What gasket materials are available and how do I choose the right one for my process?

A: Gasket options include NBR, EPDM, Viton, and PTFE, each offering specific chemical and temperature resistance properties. Select your gasket based on the process fluid, working temperature, and required chemical compatibility for optimal performance.

Q: When should I consider multi-pass connection types for my installation?

A: Multi-pass connection types are recommended for systems requiring diversified flow arrangements, extended heat transfer surfaces, or increased efficiency, particularly in complex HVAC or industrial chemical processing setups.

Q: Where can M6M plates be applied for maximum benefit?

A: M6M plates excel in applications such as plate heat exchangers, HVAC systems, power plants, and chemical processing units, improving energy efficiency and system reliability in both new and retrofit projects.

Q: What is the process for cleaning and maintaining the M6M plates?

A: Thanks to their detachable design, M6M plates support CIP (Clean in Place) maintenance, permitting efficient, tool-free disassembly for thorough cleaning and inspection without removing plates from the system.

Q: How does double sealing protection work in the M6M plate?

A: The double sealing zones prevent leakage by forming a primary and secondary barrier, ensuring fluid separation even in the event of a gasket failure, which enhances operational safety and minimizes downtime.
