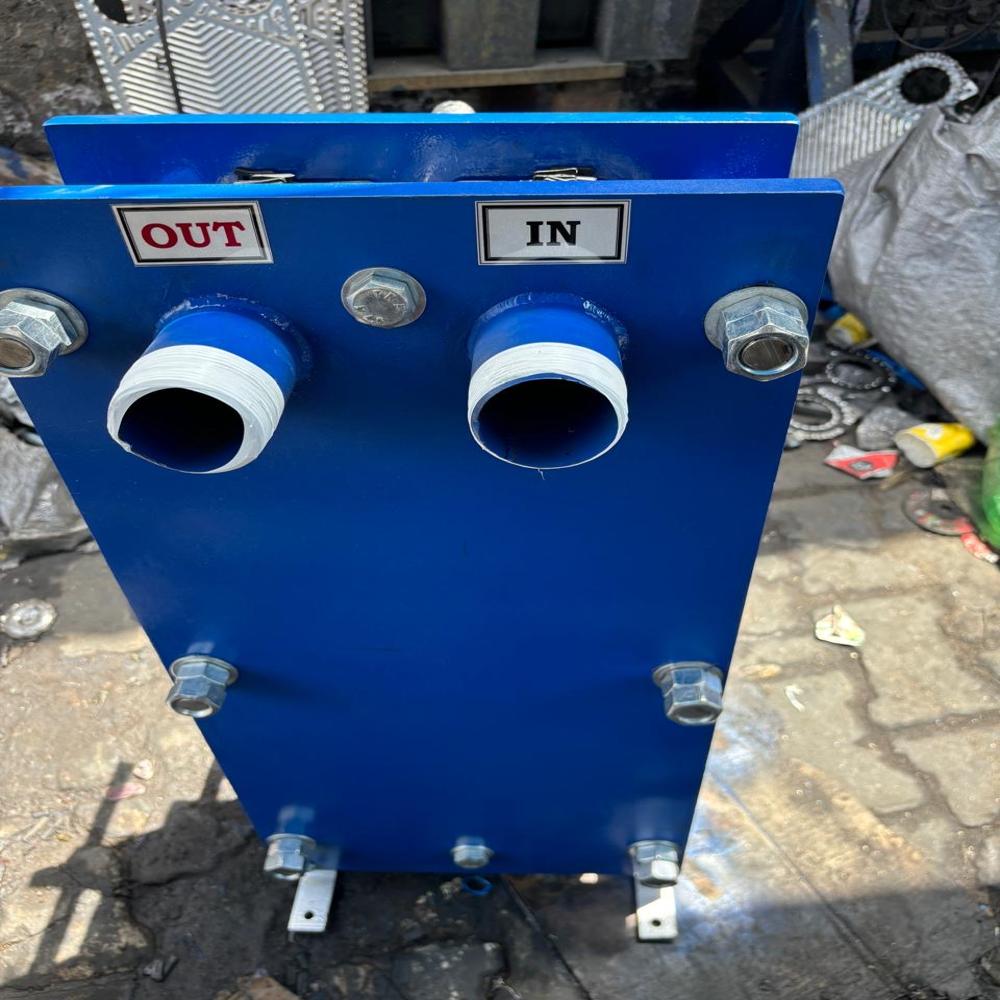

Plate heat exchanger

Price 35000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 Number

Plate heat exchanger Specification

Number of Pipe
For single pipe connection

Thickness
Typically 6mm to 30mm, as required

Max. Capacity
Corresponds to pressure rating and pipe size

Diameter
Varies as per standard (DN/ANSI sizes)

Max Pressure
Up to 40 bar (ANSI/IS standard ratings)

Condition
New

Structure
Round plate with central bore and bolt holes

Liquid Flow Rate
Depends on pipe/flange dimension

Working Presssure
Up to 40 bar (dependent on size and rating)

Voltage
N/A (Mechanical part)

Power
N/A (No electrical components)

Weight
Varies as per flange size (typical 0.5-10 kg)

Dimensions
Custom as per requirement (DN 15 to DN 600 and above)

Face Type
Raised Face (RF) / Flat Face (FF) / Ring Type Joint (RTJ)

Manufacturing Process
Forged or Machined MS

Application
Pipe fitting/jointing in oil, gas, water, power, and chemical industries

Flange Type
Weld Neck/Slip On/Blind/Socket Weld (as specified)

Material
Mild Steel (MS)

Surface Finish
Machined, rust-preventive coating

Standard
ANSI, DIN, BS, IS, JIS, etc.

Number of Bolt Holes
Depends on size (e.g., 4, 6, 8, 12, etc.)

Bolt Hole Diameter
As per standard (e.g., 16-22mm depending on flange size)

Corrosion Resistance
Can be enhanced via galvanization or special coatings

Plate heat exchanger Trade Information

Minimum Order Quantity
1 Number

Delivery Time
15 Days

About Plate heat exchanger

Unlock exceptional reliability and instant savings with our superior MS Flange, masterfully crafted for enlightened engineering solutions. Manufactured using quality mild steel, this masterpiece is available in Weld Neck, Slip On, Blind, and Socket Weld types, conforming to ANSI, DIN, BS, IS, and JIS standards. Enjoy a precision-machined, rust-preventive finish and custom configurations ranging from DN 15 to DN 600+. Benefit from extended corrosion resistance, robust construction, and seamless installation-order today to strengthen your pipeline connections in oil, gas, water, and chemical industries.

Advanced Features & Unique Qualities of MS Flange

Our MS Flange offers a blend of functional excellence and practical innovation. With customizable bolt hole diameters and face types (RF, FF, RTJ), it is forged or machined for structural integrity and longevity. The rust-preventive coating enhances corrosion resistance. Suitable for temperatures from -20C to 600C and pressures up to 40 bar, it supports diverse industrial demands. Precision engineering ensures perfect integration with industry piping systems, making every connection dependable and efficient.

Delivery, Payment, and Certification Details

Experience reliable supply and hassle-free transport services with our MS Flange. Delivery time varies based on order size and customization, commonly ranging from a few days to two weeks. Flexible payment terms, including advance and credit, are available at competitive rates. Our products are certified to comply with major international standards, ensuring quality and safety. Trust our prompt services for wholesalers, dealers, and traders seeking on-time delivery and assured product credibility.

FAQ's of Ms Flange:

Q: How is the MS Flange used in industrial applications?

A: The MS Flange is primarily used for joining or fitting pipes in oil, gas, water, power, and chemical plants, providing a secure mechanical connection that ensures leak-free operation in critical systems.

Q: What customization options are available for MS Flange dimensions and specifications?

A: MS Flanges can be customized for inner diameter, bolt hole size and number, thickness, surface finish, and face type, with diameters ranging from DN 15 to DN 600 or more to fit specific pipeline requirements.

Q: When can I expect delivery after I place an order for MS Flange?

A: Delivery time typically ranges from a few days for standard sizes to about two weeks for customized requirements; logistics and transport services are arranged for prompt supply.

Q: Where do the standards such as ANSI, DIN, BS, IS, and JIS apply?

A: These standards can be specified per your project needs and ensure the MS Flange meets international quality, safety, and dimensional compatibility for use in global pipeline systems.

Q: What is the benefit of rust-preventive coating or galvanization on MS Flange?

A: Rust-preventive coating or galvanization enhances the flange's corrosion resistance, ensuring durability and extended service life in harsh industrial environments.

Q: How does the manufacturing process-forged or machined-affect the flange quality?

A: Forged or machined MS Flanges offer superior strength, structural integrity, and precision, making them ideal for high-pressure and high-temperature applications.
